LG-52B
Sunrise Machinery
8422400090
| Out Diameter: | |
|---|---|
| Length: | |
| Quantity: | |
| Quantity: | |
Description:

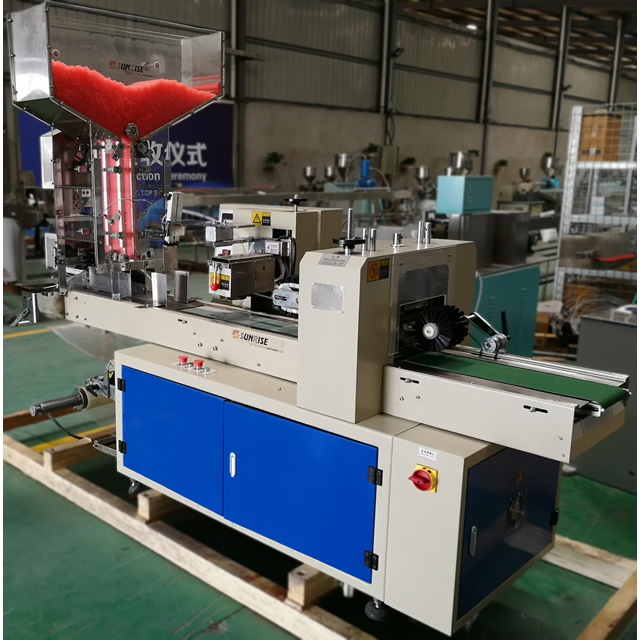

Full Automatic Bulk (group) Straw Packing Machine LG-52B is suitable for packaging straight unpackaged straws. The whole machine adopts servo control and double-row counting gears, exhaust punch, color mark tracking and continuous sealing and cutting knife, which makes the packaging accurate and efficient, beautiful in packaging, and in line with customers' different production demand.
Features:

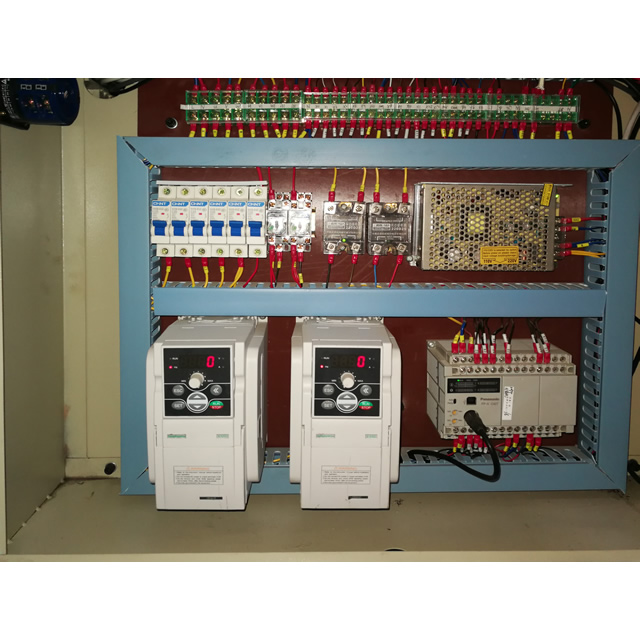

1-PLC control system, touch screen, automatic counting, automatic testing and alarm, simple operation.
2-The records of the same specification can be automatically stored once input, no need to repeat the settings, saving time and materials.
3-The whole machine runs stably and efficiently.
4-Double row straw feeding speed is fast and stable.
5-Double-row counting gears, which are accurate and efficient.
6-Wide range of packaging 100-200 (outside diameter 6 as an example)
7-Continuous work, low error rate.
8-The sealing is beautiful and neat.
9-With exhaust hole and color code tracking.
Technic data：
Model | LG-52B | |
Package type | Three side sealing (Pillow type) | |
Capacity | Φ4～6mm | ≦250pcs/bag |
Φ7～12mm | ≦100-200pcs/bag | |
Straw specification | Out diameter | Ф4-12mm |
Length | 150-250mm | |
Packing speed | 15-20 bags/min. (depends on the straw out diameter) | |
Packing film thickness | 20μ-30μ | |
Max film width | 600mm | |
Max dia.of film | 400mm | |
Paper core dia. | 76mm | |
Total power | 4KW | |
Power supply | 220V,50hz/60hz,Single Phase | |
Control type | PLC | |
Layout dimension (LxWxH) | 2970x1100x2050mm | |
Package dimension (LxWxH) | 3030x1160x2210mm | |
Net weight | 850KGS | |
