LG-52L
Sunrise Machinery
8422400090
| Out Diameter: | |
|---|---|
| Length: | |
| Quantity: | |
| Quantity: | |
Description:

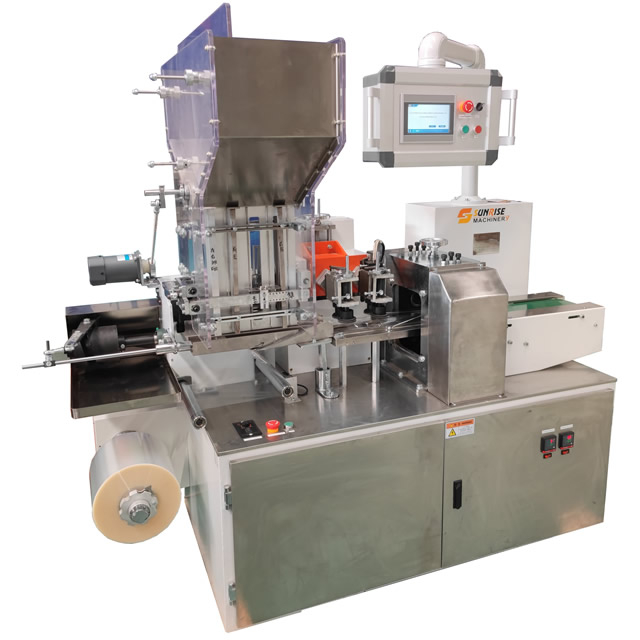

Full Automatic Bulk (group) Straw Packing Machine LG-52Lfor Set different pipe diameters, lengths, and quantities of straws Automatic bag-making and packaging, bag-making is pillow-type.
The equipment consists of a hopper, a downpipe device, a transmission system,Film unwinding device, bag making device, middle seal traction device, horizontal seal Cutting device, discharging and conveying device, and electrical control unit Grouping.
Feature:
1-Automatically track the logo cursor on the packaging film, and one logo per bag corresponds to the packaging.
2-Counting, filming, packaging, and bag making are completed in one go.
3-Adjustable bag length.
4-After horizontal sealing, it will automatically cut and separate, and the fracture will be jagged.
5-Adjustable cutting speed of horizontal seal.
6-Automatic longitudinal sealing, checkered pattern.
7-When packing the multi-rib tube (oral liquid straw). Two types of pillow pack and three-sided seal can be realized. That is, the rear tool axis group can achieve 90 Degree rotation adjustment.
8-Full servo drive; bag length, back knife speed, and cutter position can all be set on the touch screen.
Configuration
Item no. | Name of parts | Model |
1 | Total power: | 1.85Kw,AC220V,Single phase |
2 | Driving type | Servo motor |
3 | Controller | PLC |
4 | HMI | 7 inch touch screen |
5 | Temperature Controller | Huibang |
6 | Solid state relay | MGR |
7 | Packing length adjustment | Touch screen |
8 | Length of blade | 117mm |
Technical data:
Specification of the straw | Length | Standard model:120mm～200mm (LG-52) |
Extend model: 160mm～240mm (LG-52L) | ||
Out Diameter | ￠3mm～￠12mm | |
Shape of package | Outer shape | Pillow shape,Sawtooth shape |
Quantity | 3～50 pcs/package | |
Capacity | 20～70 packages/min | |
Specification of the film | Thermal sealing film BOPP, PE,OPP,etc | |
Dimension | L×W×H | 1850mm×900mm×1650mm |
Net weight | 550kgs | |
