LG-51YS
Sunrise Machinery
8422400090
| Out Diameter: | |
|---|---|
| Length: | |
| Quantity: | |
Description:

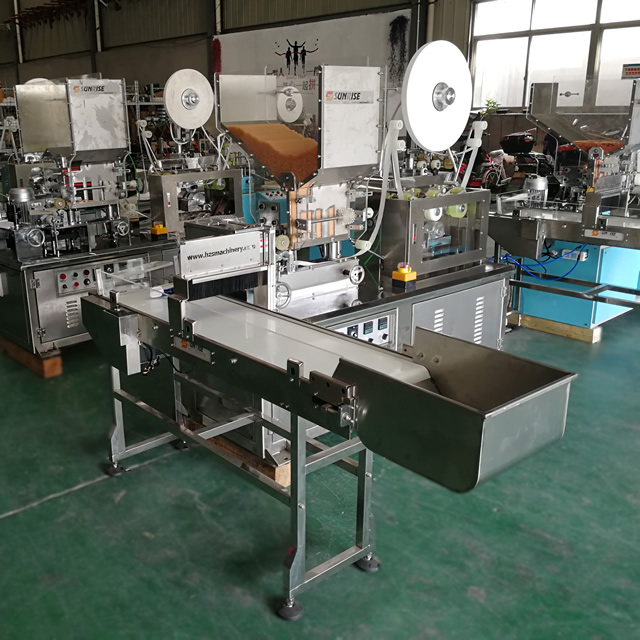

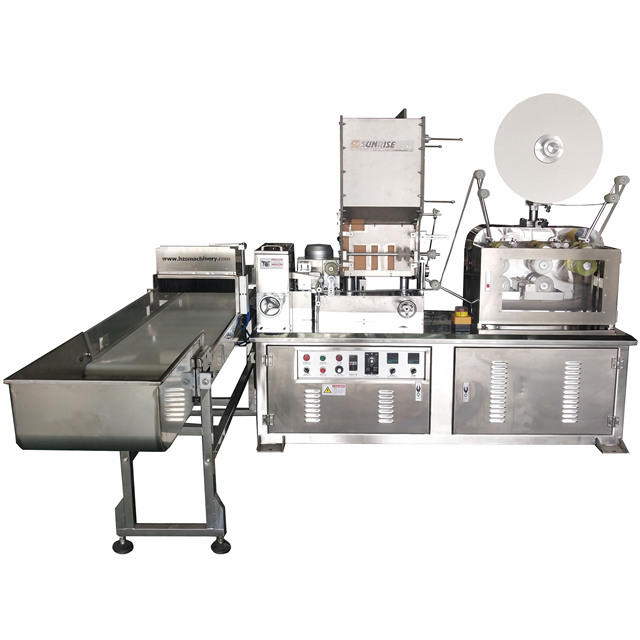

Individual Straw Packing Machine LG-51YS is our model in 2018. We modified the model of LG-51Y according to market demand. The frame and door of the whole machine are made of stainless steel SUS304, and all dangerous places are installed with protective covers according to CE requirements. The modified model has a wide range of compatibility. By change accessories such as different sealing and cutting wheels and gears, the packaging length can from 140-265mm. Due to the beautiful design , the stable running ,so it is widely liked by customers.
Features:
1-The machine runs smoothly and the printing is clear.
2-The length of 140-265mm can be packed by replacing with different accessories

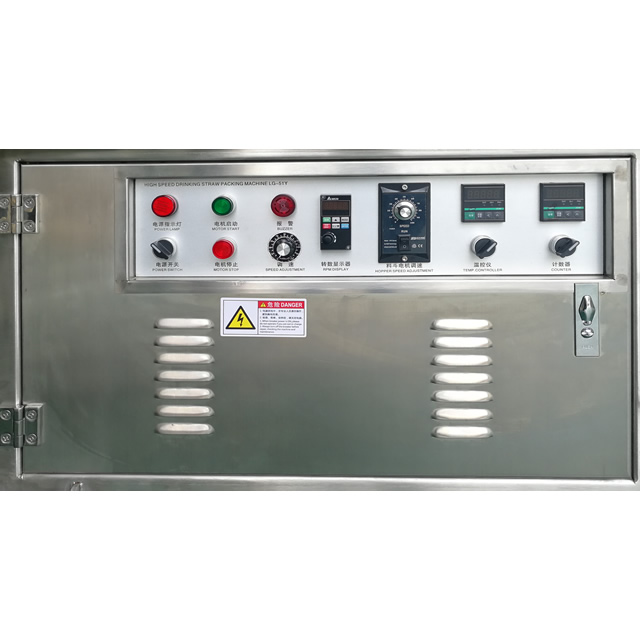

3-Built-in hidden electric control cabinet, which increases safety and operating space
4-The gantry counter separator increases the accuracy of separation.
5-The machine frame is made of stainless steel SUS304, which is clean, beautiful and healthy.
6-Our machines are designed according to CE requirements, and protective covers are installed for all dangerous places.
Technic data：
Model | LG-51YS | ||
No. of printing colors | 1 Colour, 2 Colours , None | ||
Capacity | With colour | 300-330pcs/min. | |
None colour | 700-750pcs/min. | ||
Packing type | Three sides sealing | ||
Packing material | Paper / BOPP film | ||
Straw specification | Out diameter | ф3-12mm | |
Length | 150-265mm | ||
Total power | 1.5KW | ||
Power supply | 380V,50HZ/60HZ,3 Ph, 415V,50hz,3 Ph, 440V,50hz,3 Ph, 220V,60hz,3 Ph | ||
Layout dimension (LxWxH) | 1.9x2x1.7m | ||
Package dimension (LxWxH) | 1.72x1.23x1.6m | ||
Net weight | 480KGS | ||
