LG-53
Sunrise Machinery
8422400090
| Out Diameter: | |
|---|---|
| Length: | |
| Quantity: | |
| Quantity: | |
Description:

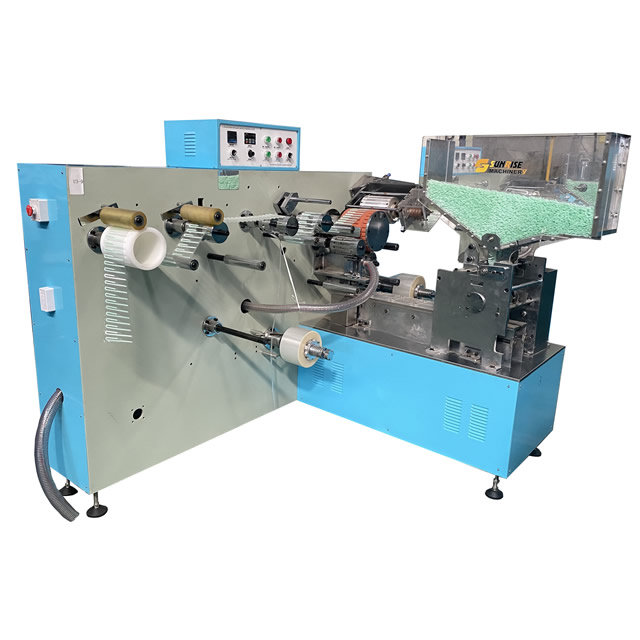

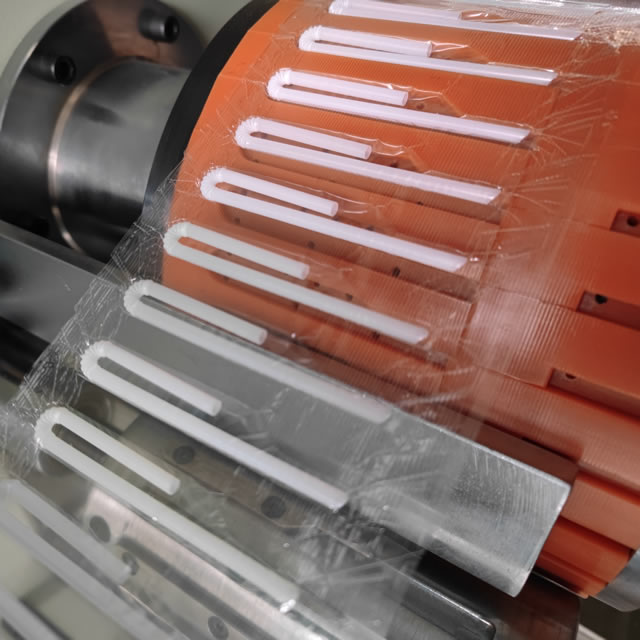

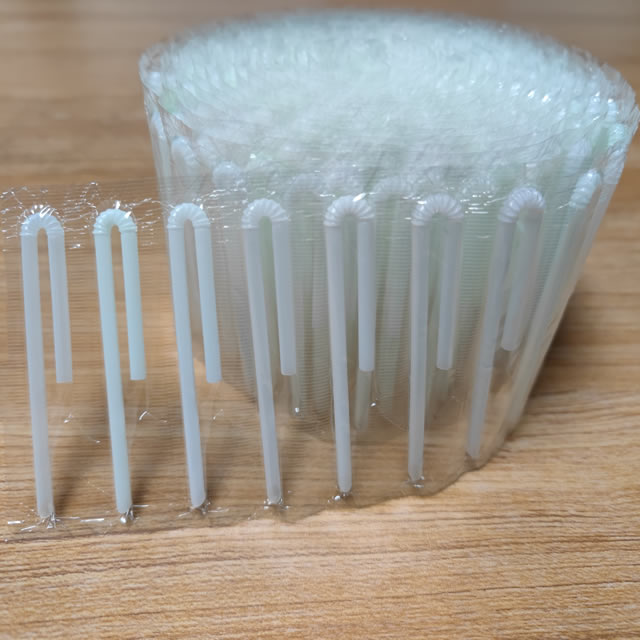

U Shape Straw Tetra Pack Packing Machine LG-53 can bend flexible straws to U-shape and automatic filling, packing it. The sealing moulds made from casted aluminum, easy to heat and steady the temperature. The machine with correcting table to repair the straw packages, so it can produce the high quality U shape straw rolls for tetra pack.
Features:
1-Straw filling, bending, packing automatic finished at once.
2-Automatic counting and batch alarm.
3-The packing speed can be adjusted.
4-The breaker ,AC contactor and knob switch brand is CHINT.
5-The inverter brand is DELTA
Technical data:
Driving motor | 2.2kw (control by inverter (DELTA) |
Capacity | 500-700pcs/min. |
Packing type | 4 sides sealing |
Raw material | BOPP film (Roll / Core dia.76mm) |
Width of film: | 180mm |
Thickness of film | 20μ-30μ |
Specification of straw | Inner dia.:Ф3.8mm , thickness:0.17~0.25mm |
Length of U shape straw | 135-185mm,the others can be special make. |
Dimension of machine | 3000×1800×1600mm |
Weight of machine | 1100kgs |
