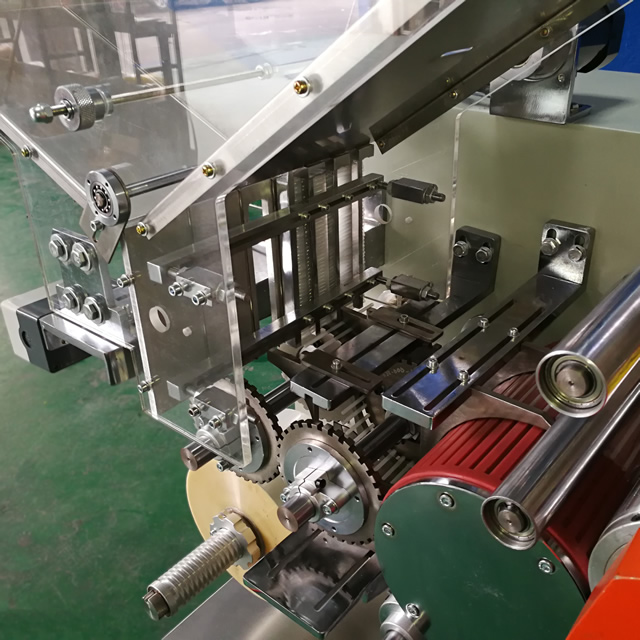

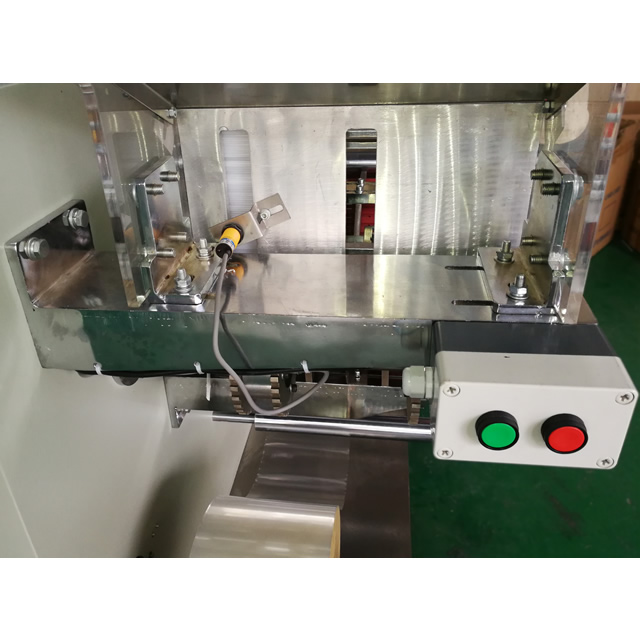

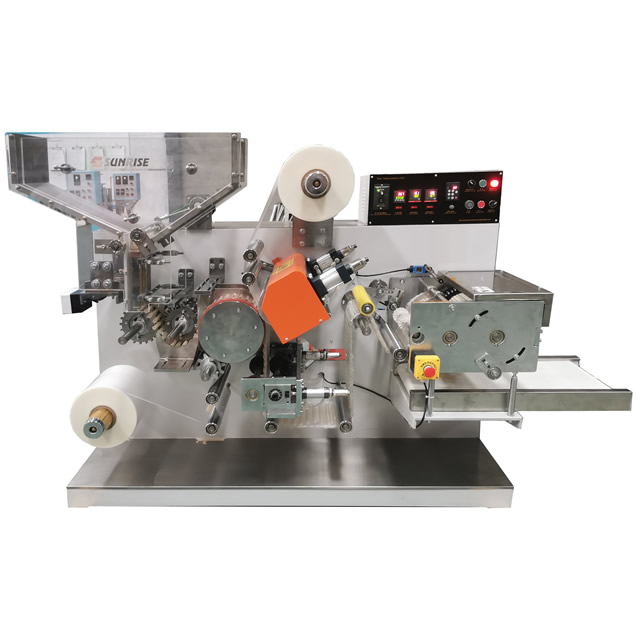

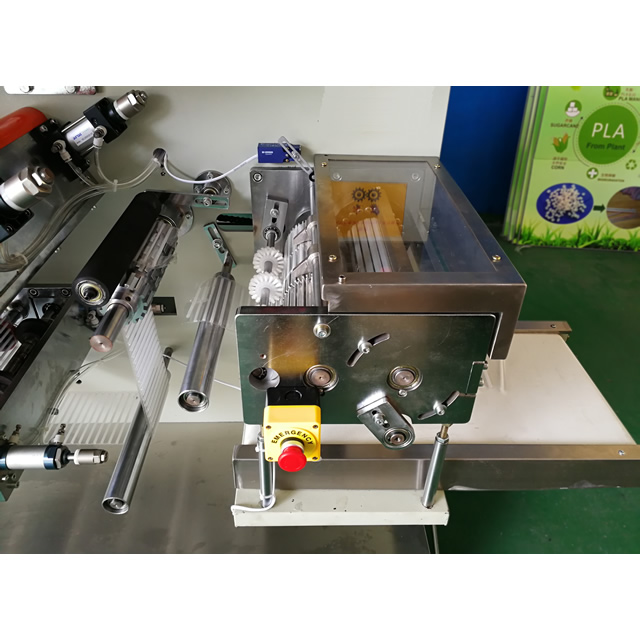

BOPP Film 4 Sides Sealing Straw Packing Machine LG-54 is a stable and high-efficiency packaging machine, which can realize single cutting (4-sided sealing) or continuous rolls of packaging with easy-to-tear lines according to different applications. The whole machine includes hopper, empty detection, feeding roller, heat sealing roller, cutting mechanism and conveyor belt, etc. It is the most ideal equipment for BOPP film 4-side sealing packaging machine.
LG-54
Sunrise Machinery
8422400090
| Out Diameter: | |
|---|---|
| Length: | |
| Quantity: | |
Description:
BOPP Film 4 Sides Sealing Straw Packing Machine LG-54 is a stable and high-efficiency packaging machine, which can realize single cutting (4-sided sealing) or continuous rolls of packaging with easy-to-tear lines according to different applications. The whole machine includes hopper, empty detection, feeding roller, heat sealing roller, cutting mechanism and conveyor belt, etc. It is the most ideal equipment for BOPP film 4-side sealing packaging machine.
Features:
1-Counting ,film rolling, packing are all completed one time in the machine.
2-Automatic counting and alarm.
3-Packing speed can be adjusted.
4-Speed controlled by inverter, working stable, has over-loading protection function.
5-Cold cutting device
Technic data:
Specification of the straw | Length | 100~110mm(2 Lines) | 100-250mm(1 Line) |
Out diameter | 3~6mm (standard) / 7-12mm (custom made) | ||
Packing speed | 1200～1300 pcs/min. | 600-650 pcs/min. | |
Specification of wrapping material | Wrapping material | BOPP film ,PE coating paper,PLA film | |
Diameter of roll | Max. 340mm | ||
Width of film | Max. 290mm | ||
| Thickness of film | 20μ-30μ | ||
Specification of the package | Outer shape | Ⅰ shape , tooth type easy tearing line | |
Straw pitch | 10mm,12mm,15mm,20mm | ||
Layout dimension | L× W×H | 2100mm×1210mm×1460mm | |
Package dimension | L× W×H | 2150mm×1250mm×1520mm | |
Power | Driving motor | 1.5Kw | |
| Total power | 6Kw | ||
| Power source | 220V / 380V ,3phase,50Hz/60Hz | ||
Weight | 1100Kgs | ||
