LG-55
Sunrise Machinery
8422400090
| Quantity: | |
|---|---|
Description:

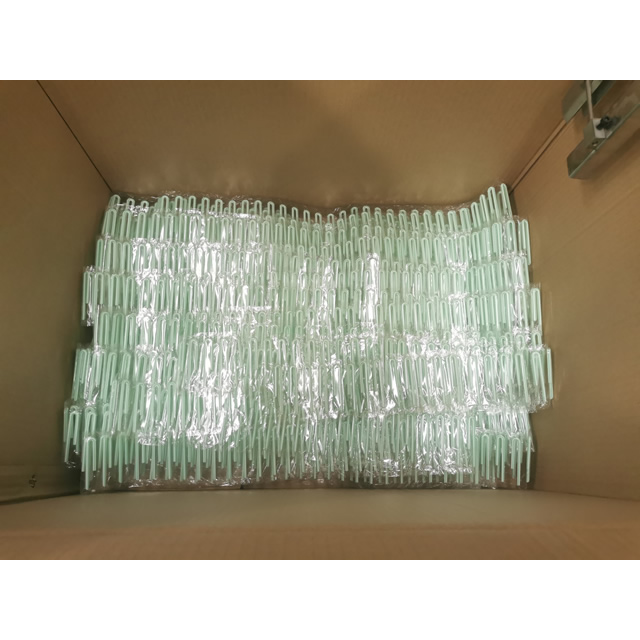

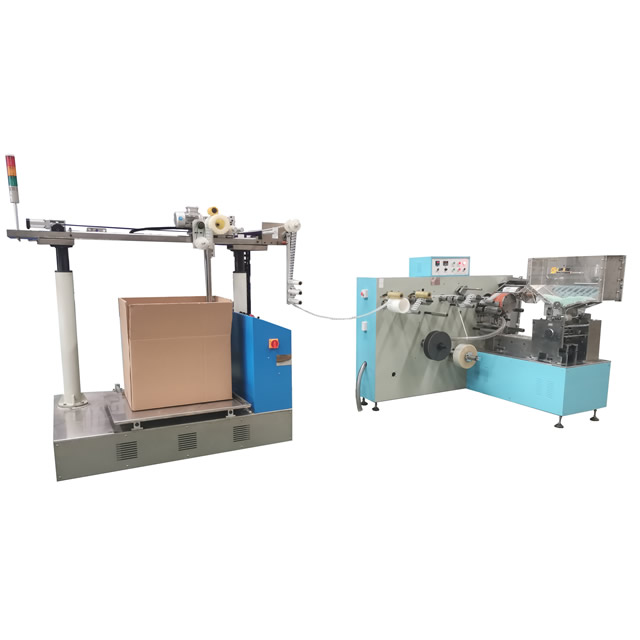

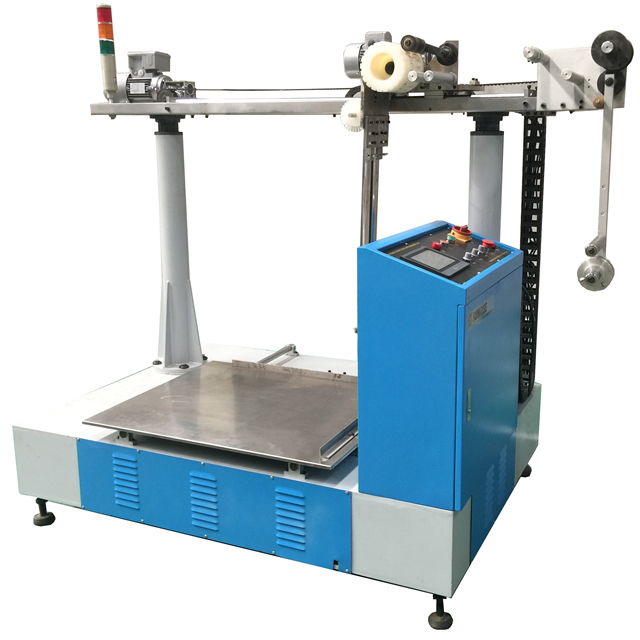

The machine can swing the U shape or I Shape straw rollers in the carton, it can automatically feed, count and swing. The feeding device can automatically move up, down, left and right according to the swing situation and capacity, and the box can also move forward and backward, which is the current replacement for manual labor.
Technic data:
Suitable straw: | Length | 90-130mm |
Suitable straw | U shape orⅠshape | |
Capacity: | 500-1000pcs/min | |
Specification of the straw roller | Straw pitch | 22mm |
Max. carton size | L× W×H | 800mm×750mm×750mm(about 20000-30000 pcs/carton) |
Dimension | L× W×H | 2000mm×1170mm×1650mm |
Packaged dimension | L× W×H | 2200mm×1280mm×1850mm |

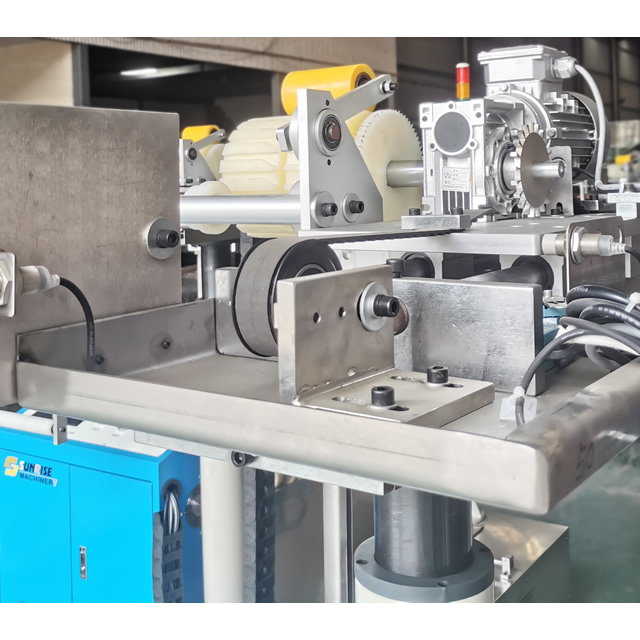

Power: | Driving motor 1 (left and right) | 0.2kw (servo motor) |
Driving motor 2 (Front and back) | 0.75kw | |
Driving motor 3 (Up and down) | 0.75kw | |
Power source | 380V 50Hz, 3 phase | |
Weight | 800KGS | |
Description:
The machine can swing the U shape or I Shape straw rollers in the carton, it can automatically feed, count and swing. The feeding device can automatically move up, down, left and right according to the swing situation and capacity, and the box can also move forward and backward, which is the current replacement for manual labor.
Technic data:
Suitable straw: | Length | 90-130mm |
Suitable straw | U shape orⅠshape | |
Capacity: | 500-1000pcs/min | |
Specification of the straw roller | Straw pitch | 22mm |
Max. carton size | L× W×H | 800mm×750mm×750mm(about 20000-30000 pcs/carton) |
Dimension | L× W×H | 2000mm×1170mm×1650mm |
Packaged dimension | L× W×H | 2200mm×1280mm×1850mm |
Power: | Driving motor 1 (left and right) | 0.2kw (servo motor) |
Driving motor 2 (Front and back) | 0.75kw | |
Driving motor 3 (Up and down) | 0.75kw | |
Power source | 380V 50Hz, 3 phase | |
Weight | 800KGS | |
